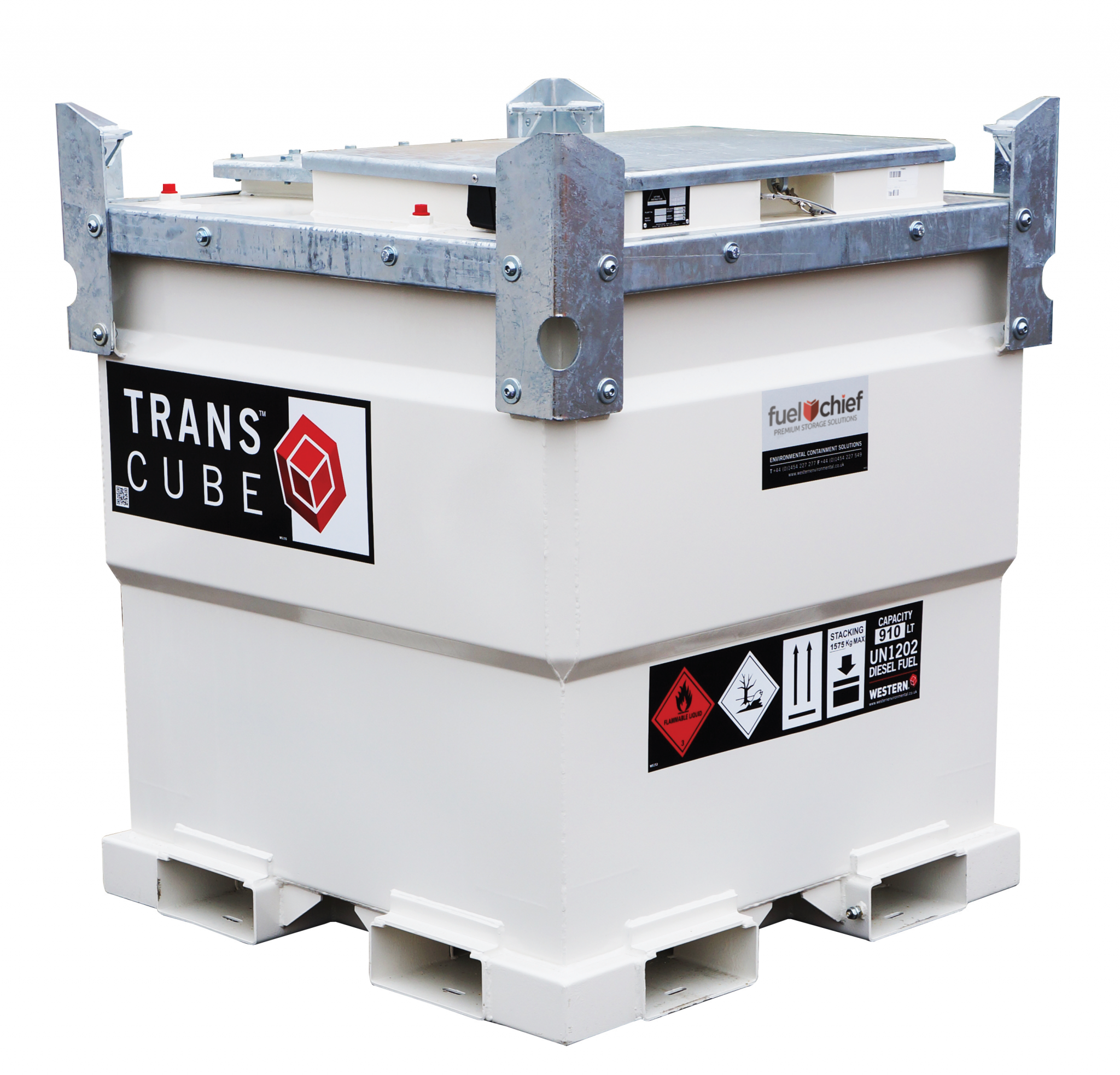

TransCube 10TCG - 960L

10TCG $6,571.26

Capacity: 960L
Safe fill: 948L
Weight: 550kg (empty)
Weight: 1413 (full)
Storage options: diesel and waste oil only
External dimensions: 1152 x 1153 x 1318mm (w,l,h)
Security: equipment and ports are secure and spills are contained

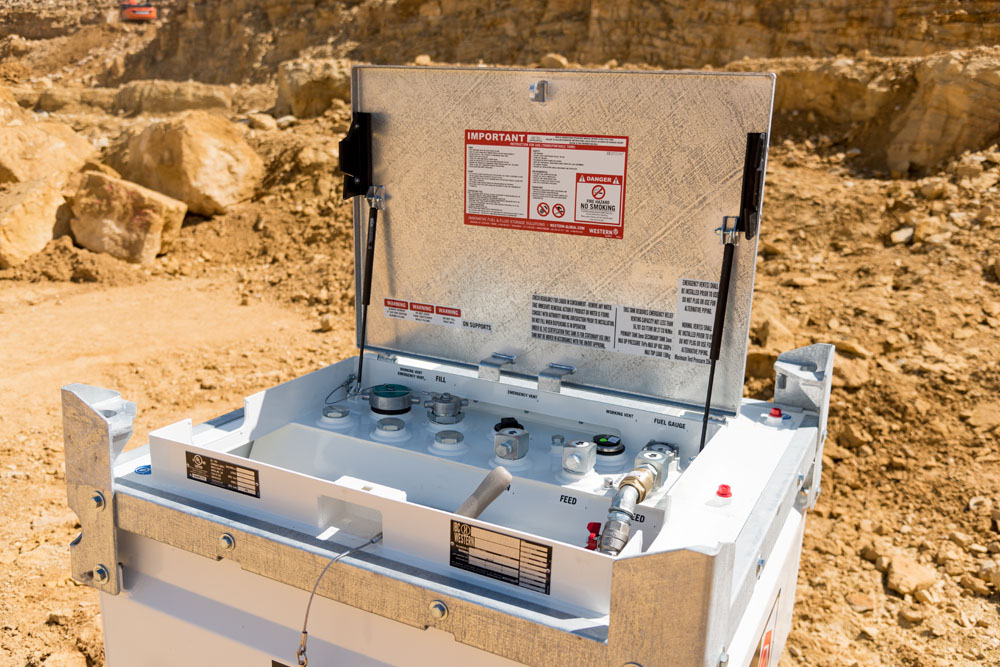

Secure hose: access enables fuelling while cabinet is locked
Access manway: allows access to inner tank for easy routine maintenance and inspection
Corner brackets: easy to lift by crane and easily stackable 2 high (full) and 3 high (empty)
Galvanised frame: reliable and secure structure with added protection from bumps, scratches and dings

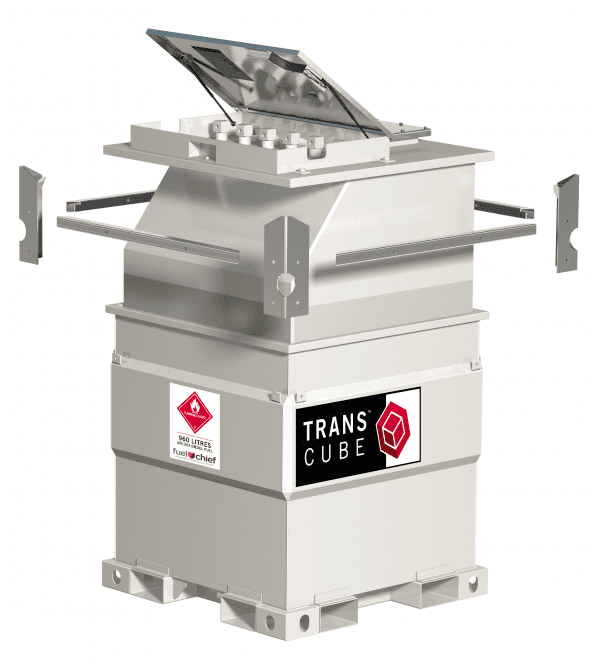

Removable inner tank: for routine cleaning, maintenance and inspection
Internal baffles: designed to maximise stability when handling the tank full of fuel
110% bunded: built-in, weather proof, secondary containment eliminates the need for drip trays
4-way lift pockets: quick and easy manoeuvring
Warranty: 3 year warranty

Note: all pricing includes GST

Request a Quote

Detailed Description
Downloads

The Fuelchief TransCube Global 10TCG is a 110% bunded transportable tank, that covers multiple diesel storage applications across multiple industries including construction, marine and agricultural to name a few. It is a compact tank that is EPA approved for transport full of fuel, and features a lockable equipment cabinet and 4-way forklift channels for easy lifting.

The TransCube Global 10TCG stores 960 litres and offers a range of solutions for the user. Below are the most common uses for this transportable tank:

Short-term fuel requirements: The TransCube Global 10TCG is the ideal solution for short to medium term onsite fuel storage. TransCube fuel tanks can be supplied as a standby tank or as a complete fuel storage package with pumping equipment.

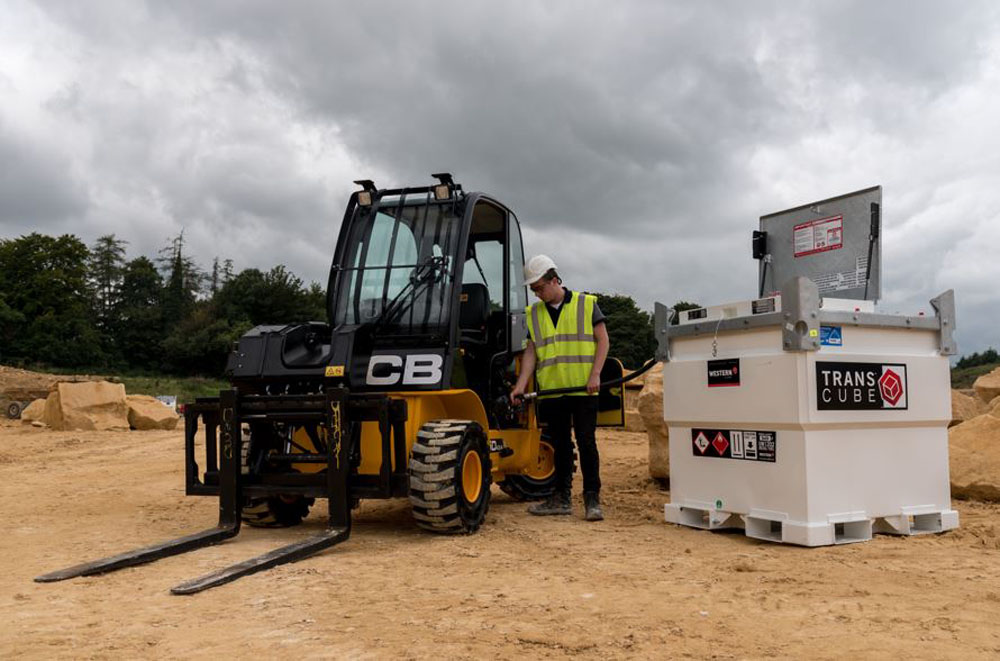

Generator and auxiliary equipment: TransCube Global 10TCG has the ability to quickly and efficiently connect to 3 diesel powered pieces of equipment and refuel equipment via pump at the same time. As an auxiliary fuel tank, it provides longer engine running time, reducing the number of site visits required for refuelling. Fuel can be easily dispensed by manual or electric pump option, ensuring productivity and efficiency on site.

Fuel transport: meeting multiple worldwide transport regulations, the TransCube Global 10TCG can transport fuel safely and efficiently anywhere you need it. By transporting fuel to site with a TransCube Global 10TCG, you are ready to start upon arrival due to its rapid deployment. TransCubes can be easily relocated between sites, reaching even the most difficult locations.
Work site safety: The TransCube Global 10TCG’s unique bunded design and integral cabinet captures any accidental drips or spills and eliminates the need for external drip trays. TransCubes are designed for safe and easy handling whilst full – carrying multiple certifications and approvals that ensure safety for the environment and operator. With internal baffles, forklift pockets and lift/stack corner brackets, the TransCube 10TCG decreases set up and transport time.

Warranty

3 year warranty from date of shipment

Package Options

Fuelchief offers the following for TransCube Global 10TCG listed below. If you have any questions just contact Fuelchief:

10TCG – Fuelchief 10TCG Bare Diesel Tank (948 SFL)
10TCGP6M12V – Fuelchief 10TCG Diesel Tank (948 SFL)with 12V Bi Pump Kit, Mechanical Meter, 6m Hose & Auto Nozzle
